Immersion Silver Flex Rigid PCB Halogen Free 0.3-3.5mm Thickness

Brand Name : IBE

Place of Origin : CHINA,VIETNAM,USA

MOQ : NO MOQ

Payment Terms : L/C, T/T, D/P, T/T, D/A,

Delivery Time : 15 WORKING DAYS

Packaging Details : BAG

Model Number : FG-16

Certification : ISO 9001

Price : 0.2-0.5

Supply Ability : 100000pcs

Colour : yellow

Size : 110mm*90mm

Name : PCB

Material : FR4

Surface : Immersion Gold

Layer : 1-16

Contact Now

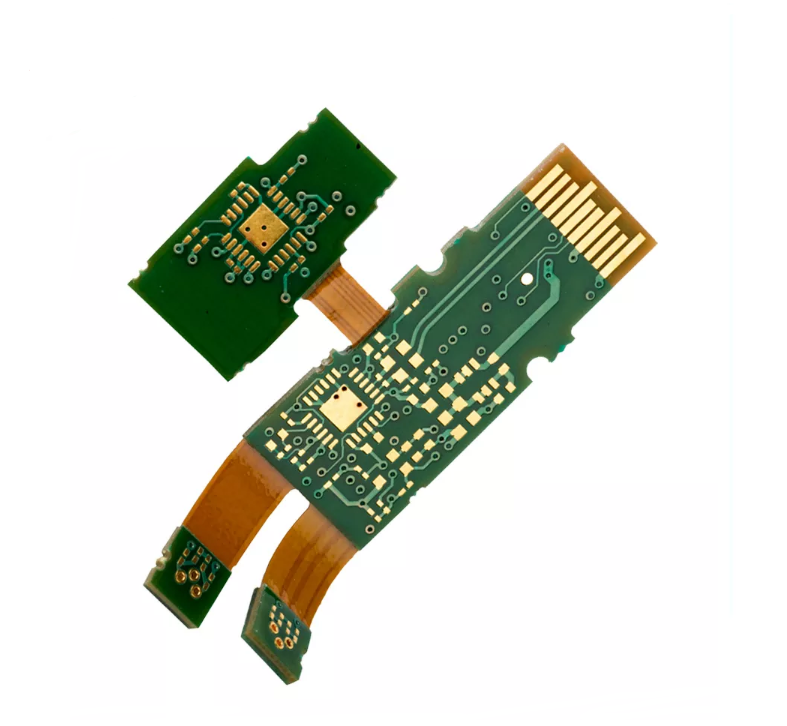

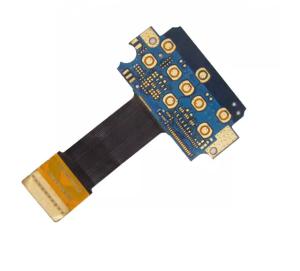

Immersion Silver Flex Rigid PCB

About IBE Corporation

Founded in 2005, IBE Corporation is a mid-size provider of end-to-end electronics manufacturing services (EMS) including PCBA production, systems integration and comprehensive testing services, enclosure fabrication, as well as product design, sustaining engineering and supply chain management services. IBE facilities span a broad footprint in the China,United States and Vietnam. IBE services extend over the entire electronic product life cycle from the development and introduction of new products through to the growth, maturity and end-of-life phases.

Immersion Silver Flex Rigid PCB Halogen Free 0.3-3.5mm Thickness

Production capability:

1	Material	PR4,Halogen free, High TG,CEM3,PTFE,Aluminum BT,Rogers
2	Board Thickness	Mass Production:0.3-3.5mm Samples:0.21-6.0mm
3	Surface Finish	HASL,OSP,Immersion Silver/Gold/SN,Flash Gold, Gold Finger,Hard Gold Plating
4	PCB Panel Size	Max Mass Productoin: 610x460mm Sample:762x508mm
5	Layer	Mass production:2-58 Layers, Samples:1-64 Layers
6	Min. Drill Hole Size	Laser Drill 0.1mm,Machine Drill 0.2mm
7	PCBA QC	X-ray,AOI Test,Functional Test
8	Speciality	Automotive,Medical/Gaming/Smart Device,Computer,LED/Lighting,etc
9	Sanforized	Buried via, Blind via, Mixed Pressure,Embedded Resistance,Embedded Capacitance, Local Mixed Pressure, Local High Density, Back Drill, Impedance Control

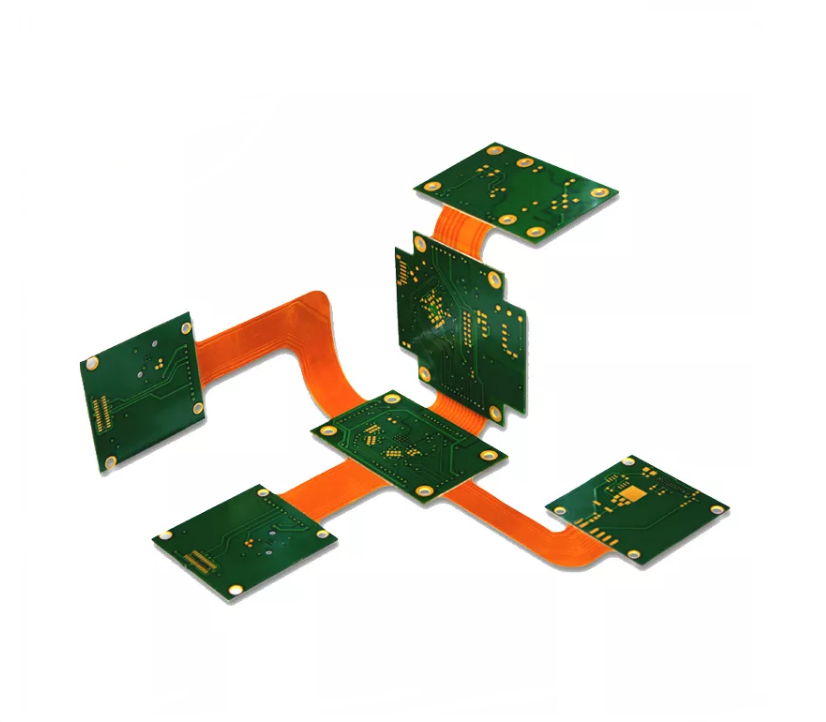

Rigid-flex PCB manufacturing applications
Rigid flexible PCB provides a wide range of applications from smart devices to mobile phones and digital cameras. Rigid-flex PCB manufacturing has been increasingly used in medical devices such as pacemakers to reduce their space and weight. The use of rigid flex PCB has the same advantages and can be applied to intelligent control systems.

In consumer products, the rigid-flex PCB not only maximizes space usage and minimizes weight, but also greatly improves reliability, thereby eliminating many needs for solder joints and fragile and fragile wiring that are prone to connection problems. These are just a few examples, but rigid-flex PCBs can benefit almost all advanced electrical applications, including test equipment, tools, and automobiles.
